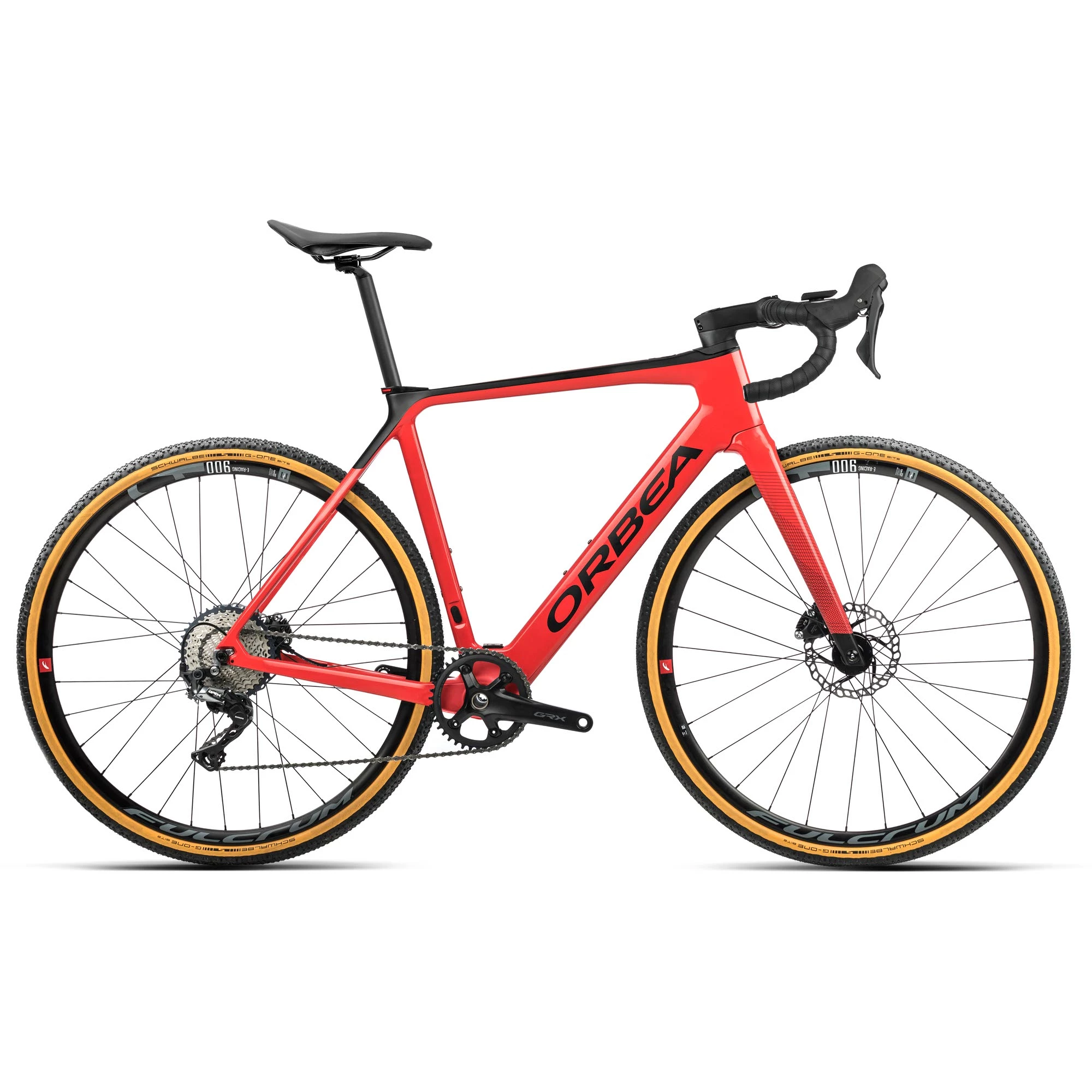

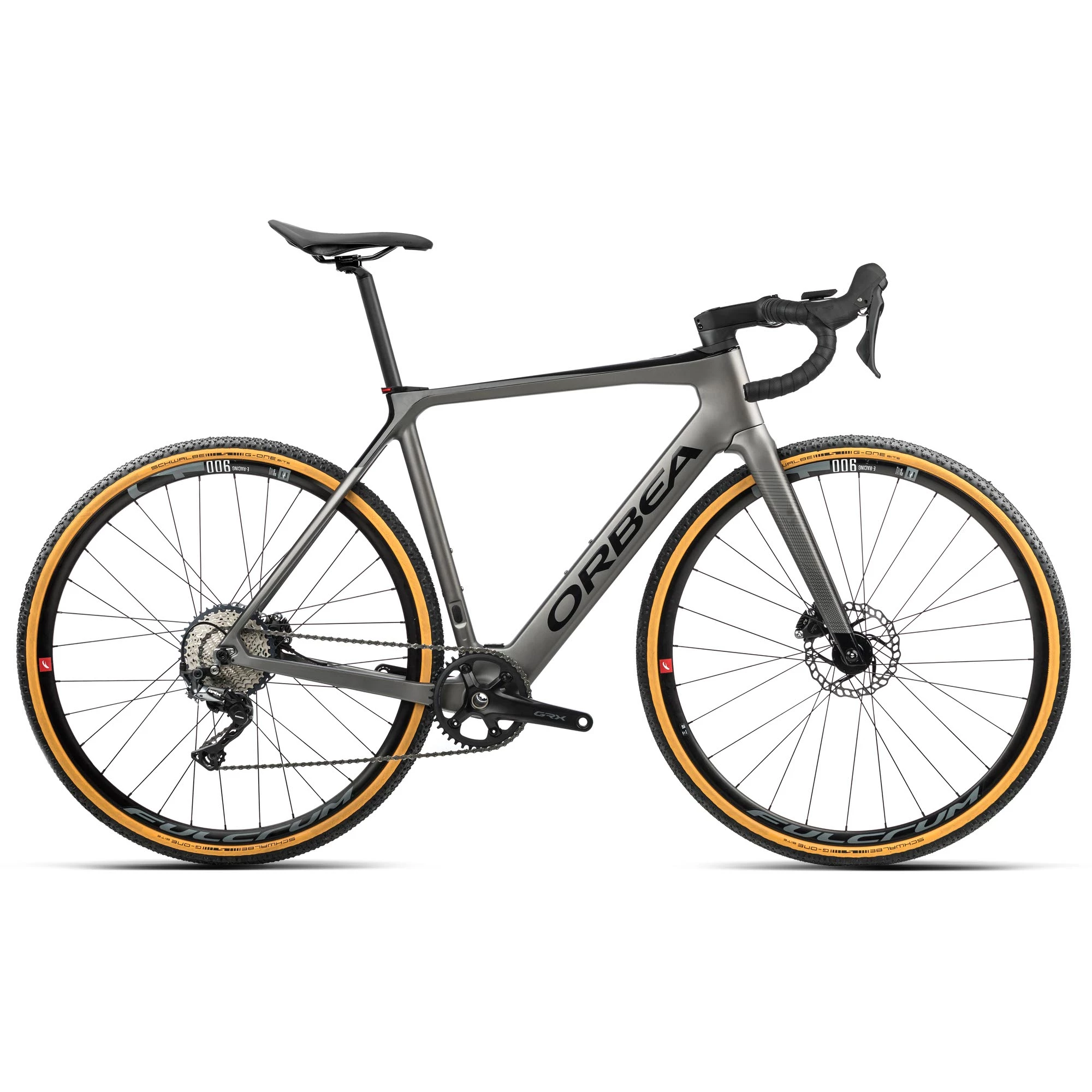

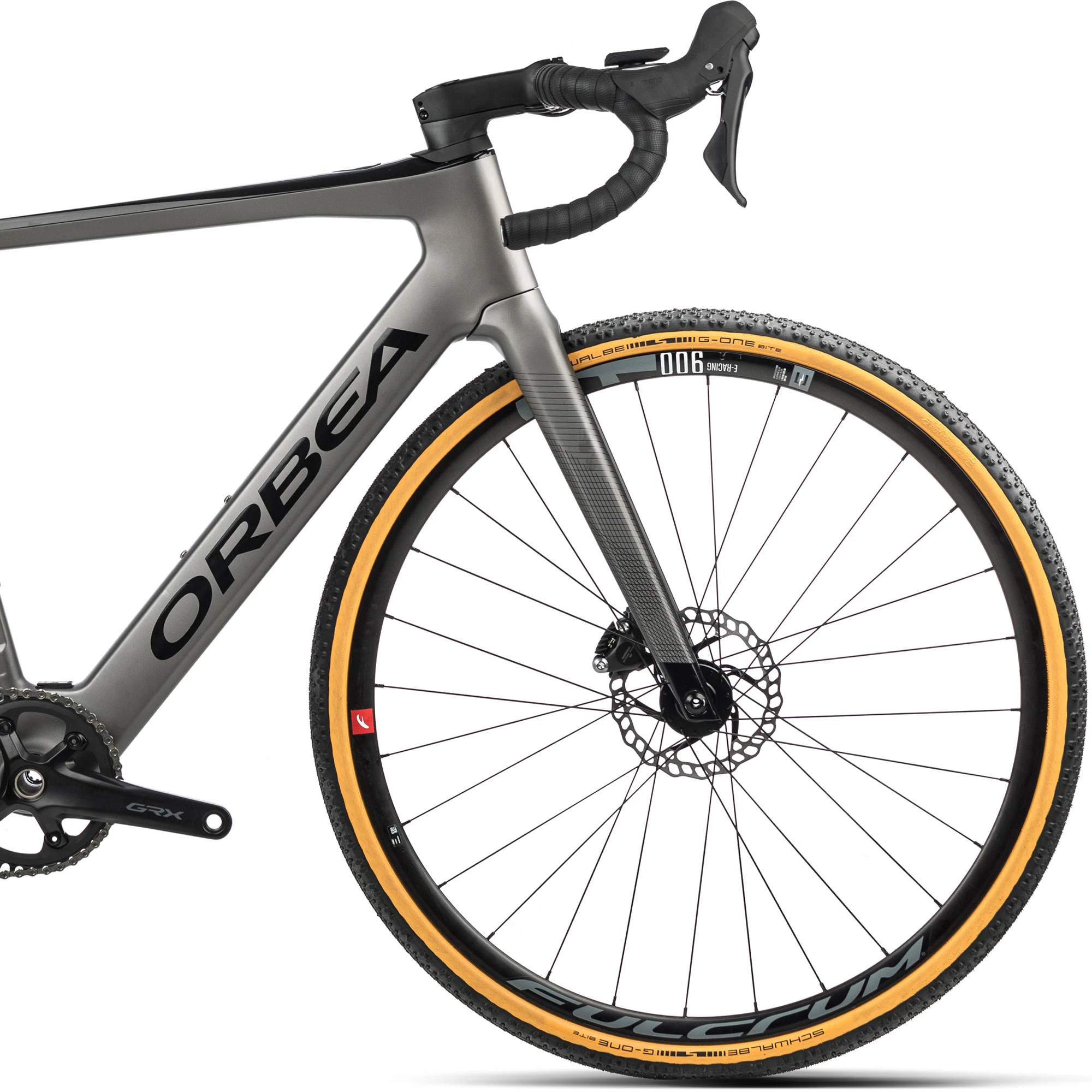

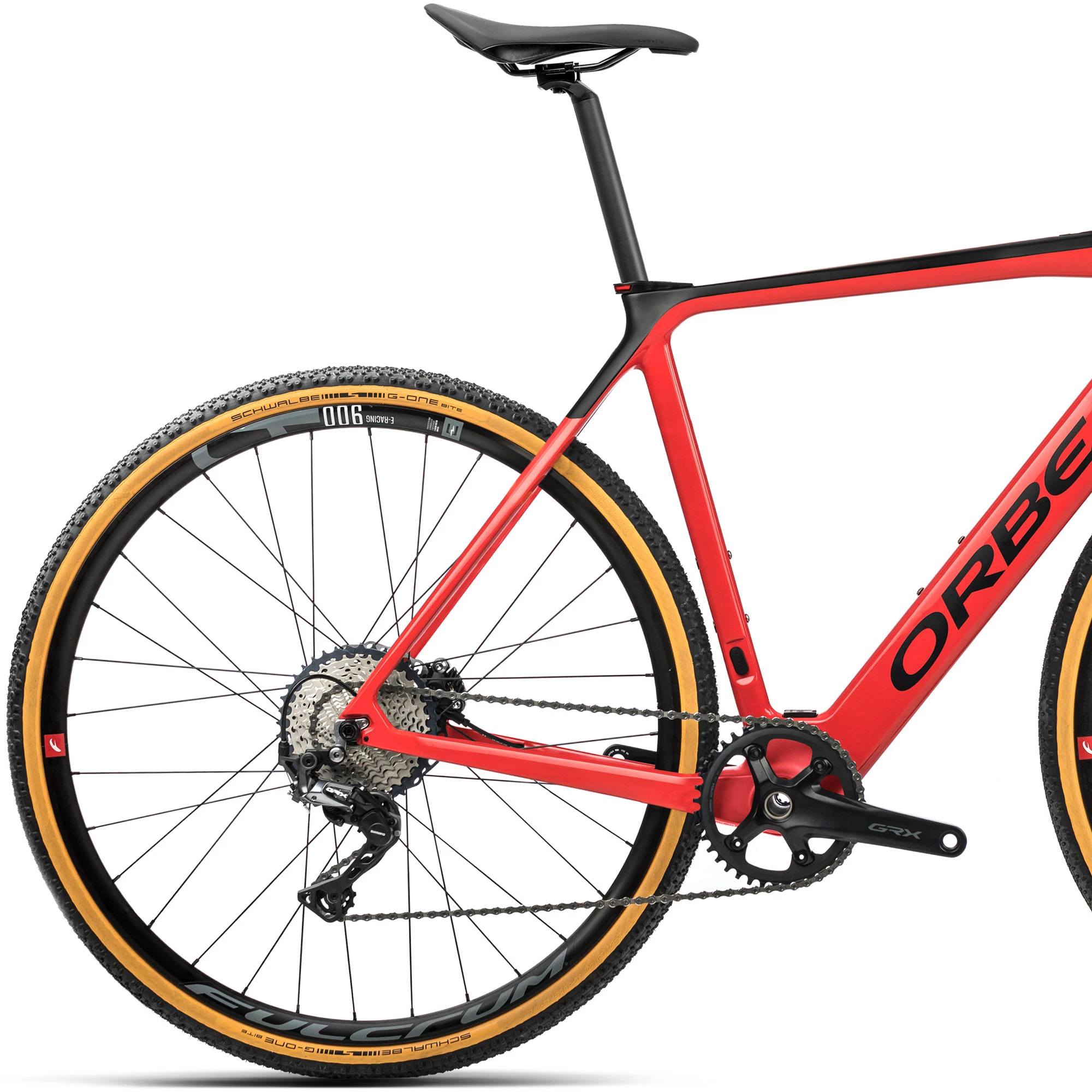

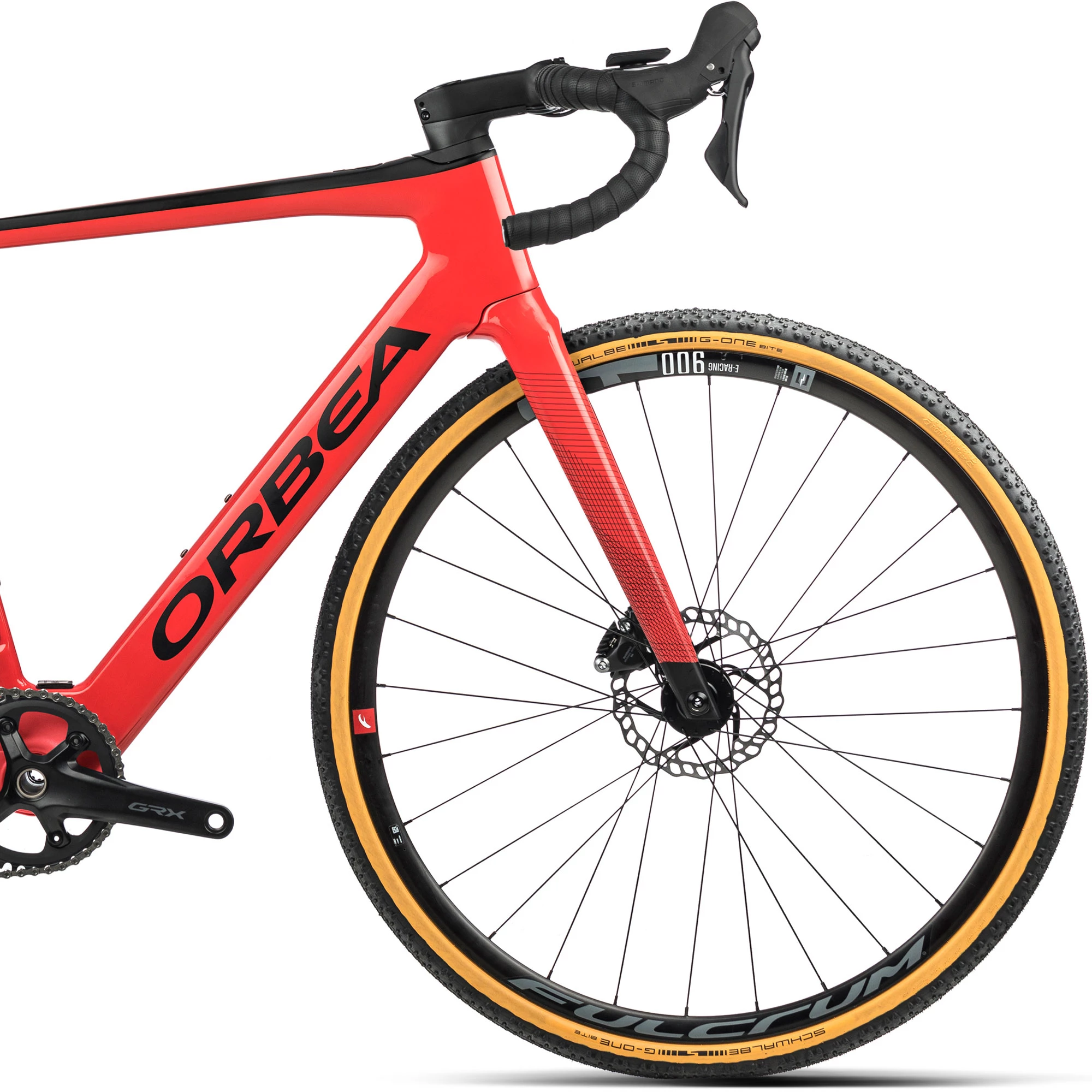

Orbea Gain M30 1X Electric Gravel Bike 2022
Built for all-road adventures, the Orbea Gain M30 1X Electric Gravel Bike opens up the world for exploration, with its reliable single-ring drivetrain, wide 38c tyres and lightweight frameset providing the tools you need to expand your horizons. At the heart of this ride is the carbon frameset, which features an integrated seat clamp and rear STVZO compliant rear light. Light yet durable, this frameset neatly houses the internal battery within the downtube, which works in conjunction with the integrated cabling to deliver a sleek, uncluttered aesthetic.Â
Smart and intuitive, the Ebikemotion X35 Plus motor system is renowned for its impeccable performance and natural feel. Rather than dominating your rides, it offers silky-smooth help that enhances your power, supplying a familiar and authentic ride experience with assistance up to a maximum speed of 15.5 mph / 25 km/h
The parts specification balances off-road durability with lightweight performance, offering a perfect blend for fast, overland rides. Shimano takes care of the drivetrain and brakes, with their excellent GRX groupset providing near-telepathic shifting and well-controlled braking. The Fulcrum E-Racing 900 wheelset is lightweight and robust, while the Schwalbe G-ONE Bite tyres issue tacky traction across a range of surfaces without compromising rolling speed.Â
Browse our range of Orbea electric gravel bikes today.
Highlights
- The Ebikemotion X35 Plus motor improves your rides rather than dominating them
- The motor is located on the wheel axle, not the bottom bracket, so you’ll enjoy pedalling without resistance when the power assist is off
- ICR Plus internal cable routing keeps the cockpit clean looking
- Integrated lights draw power from the main battery
- An Ebikemotion 248Wh battery is neatly housed in the downtube
- The Ebikemotion iWoc ONE interface displays battery and the assistance level as you ride
- Endurance geometry is perfect for all-day rides
- Shimano GRX 11-speed groupset is ideal for gravel riding
- Schwalbe G-ONE Bite tyres are plush and comfortable off-road, providing plenty of grip on a range of surfaces
Battery Specification
- Maximum Assist: 250w, 40Nm
- Motor Weight: 3.5kg
- Battery Power: 248Wh
Technical Specification
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135×9 QR, Flat Mount disc, 700×40 maximum tyre, 1″ 1/2 semi headset, BB386 EVO |
| Fork | Gain OMR carbon fork, with 1-1/5 carbon steerer, 700×40 maximum tyre, flat mount disc mount, 12x100mm Thru-Axle, with down tube aero integration |
| Headset | Acros Alloy 1-1/2″ Internal Cable Routing |
| Stem | Orbea OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface |
| Handlebar | Orbea OC GR30 Gravel, 80mm reach, 125mm drop, 12° |
| Front Brake | Shimano GRX400 hydraulic disc |
| Rear Brake | Shimano GRX400 hydraulic disc |
| Brake Levers | Shimano GRX400 |
| Rear Derailleur | Shimano GRX812 GS 11-speed |
| Shift Levers | Shimano GRX ST-RX600 11-speed |
| Chain | Shimano HG 601 |
| Cassette | Shimano SLX M7000, 11-40t, 11-speed |
| Crankset | Shimano GRX RX600, 40t |
| Front Wheel | Fulcrum E-Racing 900, clincher, 700c |
| Rear Wheel | Fulcrum E-Racing 900, clincher, 700c |
| Front Tyre | Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, tubeless-ready |
| Rear Tyre | Schwalbe G-ONE Bite, 700x38c, Performance Line RaceGuard, TLE, ADDIX Classic Skin, tubeless-ready |
| Seatpost | Orbea OC carbon. 27.2mm diameter, zero offset, for integrated light |
| Pedals | Available to be purchased separately |
| Accessories | Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen, STVZO |
| Motor | Ebikemotion X35 Plus, 250W, 40Nm |
| Remote | Ebikemotion iWoc ONE |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Charger | Ebikemotion X35 |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
| colour | Speed Silver/Black, Coral/Black |
|---|---|
| Size | XS, S, M, L, XL |
