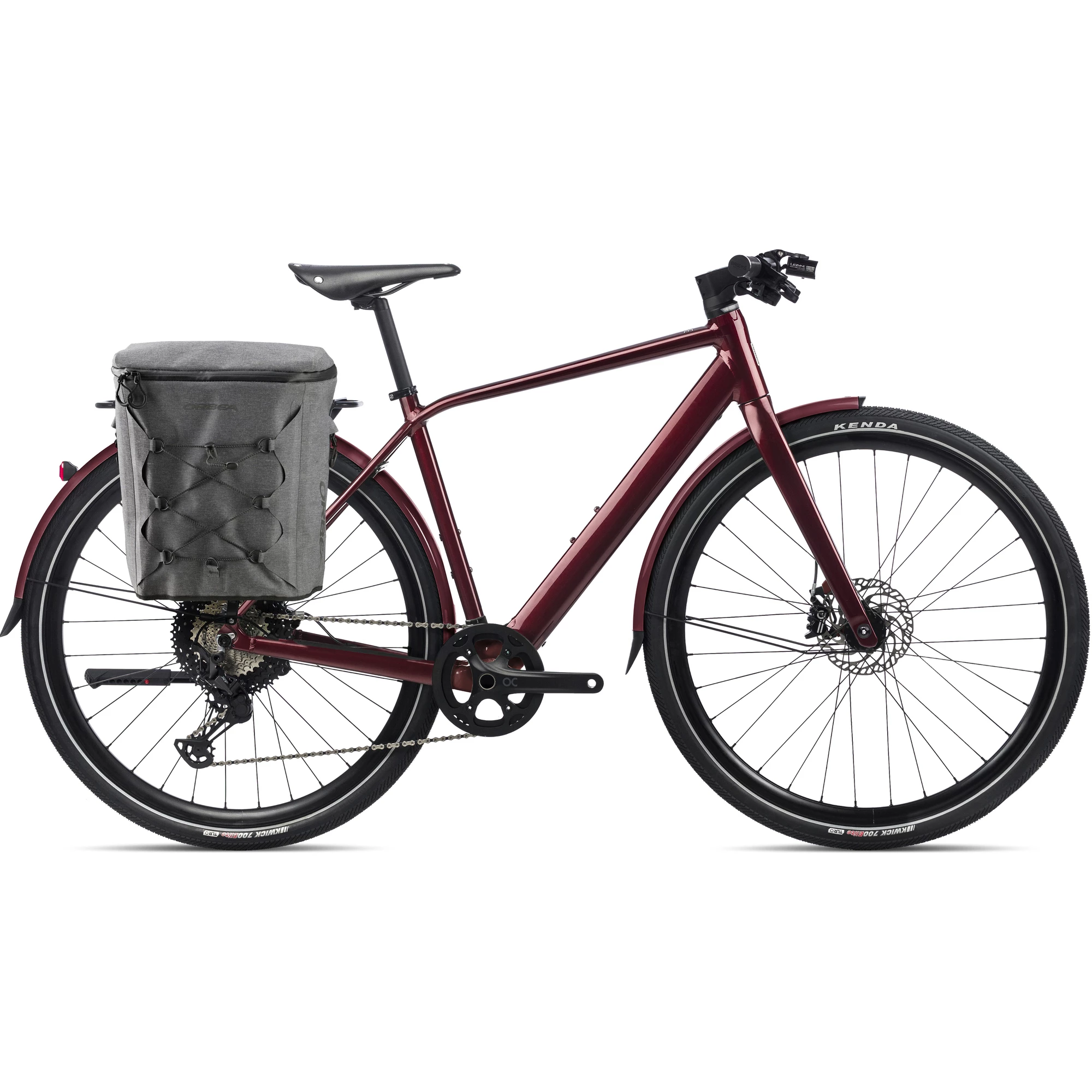

Orbea Vibe H10 EQ Electric Hybrid Bike 2022

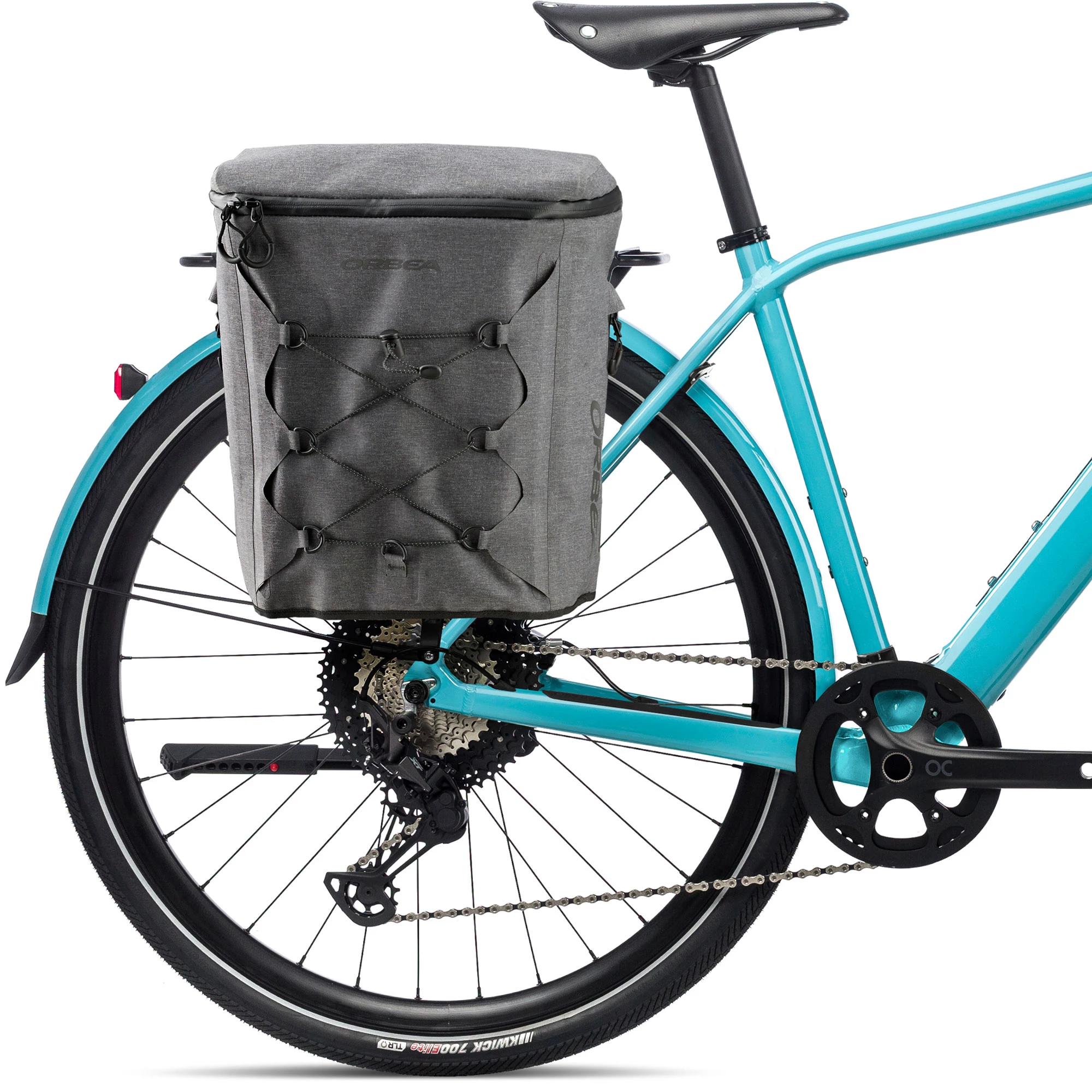

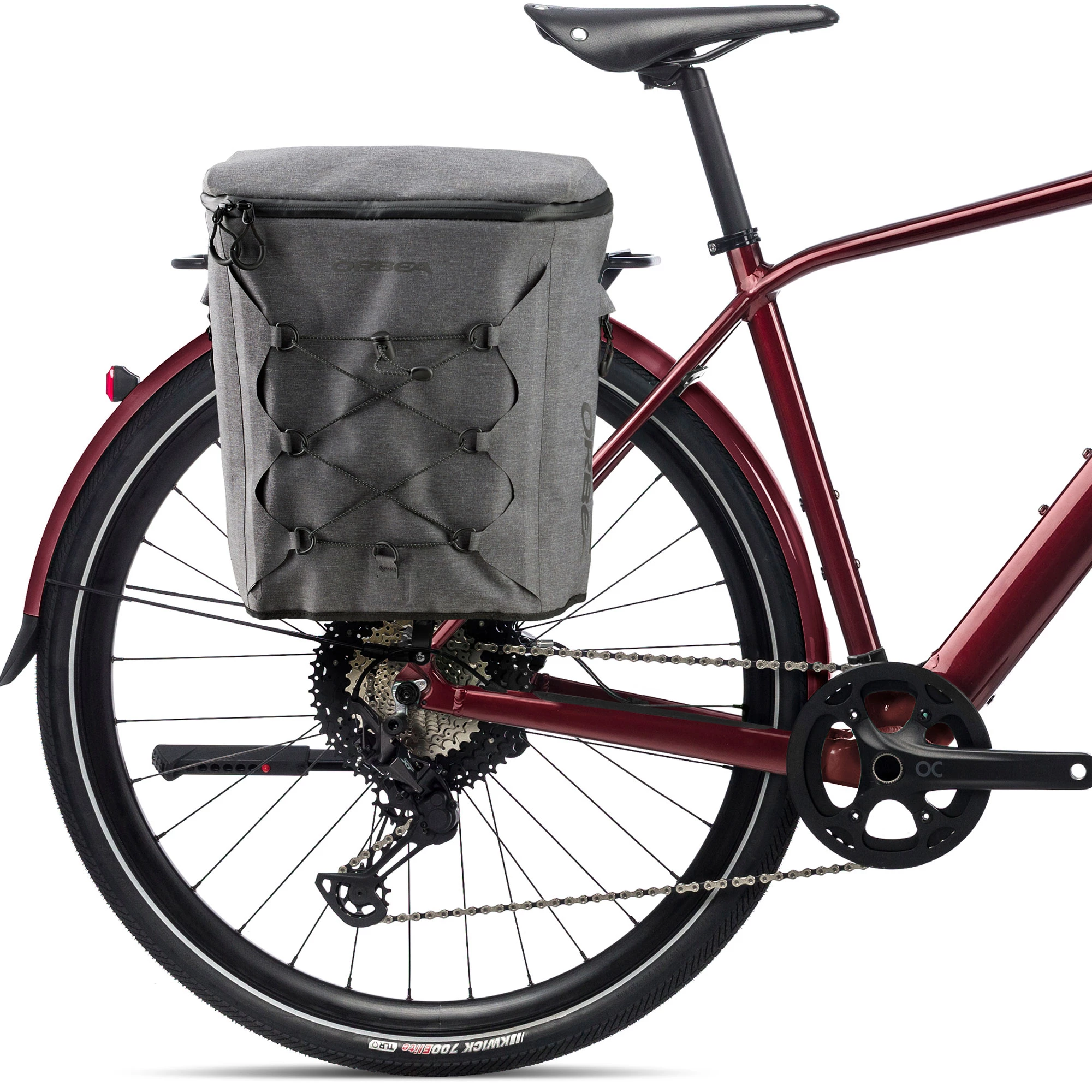

Fully equipped for all of life’s eventualities, the Orbea Vibe H10 EQ Electric Hybrid Bike is the ultimate choice for discerning commuters and leisure riders seeking a purposeful and stylish ride. This EQ edition comes pre-installed with mudguards, a rear pannier rack and bag, integrated lights and a kickstand, ensuring it is ready to go straight out the box. Integrated cabling provides a sleek and clean look, while the slimline 248Wh battery is nestled neatly into the downtube to offer a traditional, non-electric aesthetic.Â
Controllable via the iWoc TRIO remote control, the Ebikemotion X35 Plus motor is contained within the rear hub, delivering 40Nm of torque to help you cruise any hill and assistance up to a maximum speed of 15.5 mph / 25 km/h. The four-piston MT5 E-STOP hydraulic brakes provide efficient stopping power, and the 12-speed Shimano XT drivetrain offers crisp shifting and a wide gear range. The Kenda tyres are reflective and feature a puncture-resistant strip, and Brooks touchpoints offer an added degree of ergonomic comfort.Â
Browse our range of Orbea electric hybrid bikes today.
Highlights
- This EQ edition features mudguards, a pannier rack, pannier side bag, Leyzne lighting, Knog OI classic bell, and a built-in stand as standard
- Integrated frame lighting
- Lightweight internal Ebikemotion 248Wh battery
- Ebikemotion X35 hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Torque Simulation Algorithm mirrors the effort you put in, with a max torque of 40Nm
- Near drag-free pedalling when the motor is not in use
- Discreet iWOC TRIO handlebar remote
- 12-speed Shimano XT/Deore groupset for smooth shifting
- Powerful hydraulic Magura MT5 E-STOP disc brakes
- Brooks saddle and grips
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Motor Weight: 2.1kg
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135×9 QR, flat mount disc, 700×45 maximum tyre clearance, 1″ 1/2 semi head set, 41×86,5 Pressfit BB, carrier and mudguard compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2″ Internal Cable Routing |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea Alloy 31.8mm 12mm Rise 700mm |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT5 E-STOP Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT5 E-STOP |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus 12-speed |
| Shift Levers | Shimano Deore M6100 12-speed |
| Chain | KMC X12 |
| Cassette | SunRace CSMZ80 11-51t 12-Speed Metallic E-bike |
| Crankset | Orbea OC 42t, with chainguard |
| Front Wheel | Ready GR |
| Rear Wheel | Ready GR, Ebikemotion X35 Plus hub |
| Front Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type TLR, clincher |
| Saddle | Brooks Cambium C19 275×184 |
| Seatpost | Orbea Alloy 27.2, offset |
| Pedals | Available to be purchased separately |
| Motor | Ebikemotion X35 Plus 25kmh |
| Ui/Remote | Ebikemotion iWoc TRIO |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Accessories | Integrated lights front and rear, additional Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens front light, Lezyne FENDER STVZO rear light, Ursus Mooi R90 rear alloy adjustable bike stand, Knog OI Classic bell, CURANA Apollo 55mm mudguard, Orbea Vibe rear luggage carrier (maximum weight 15kg) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
| colour | Blue, Night Black, Metallic Dark Red |
|---|---|
| Size | S, M, L, XL |
