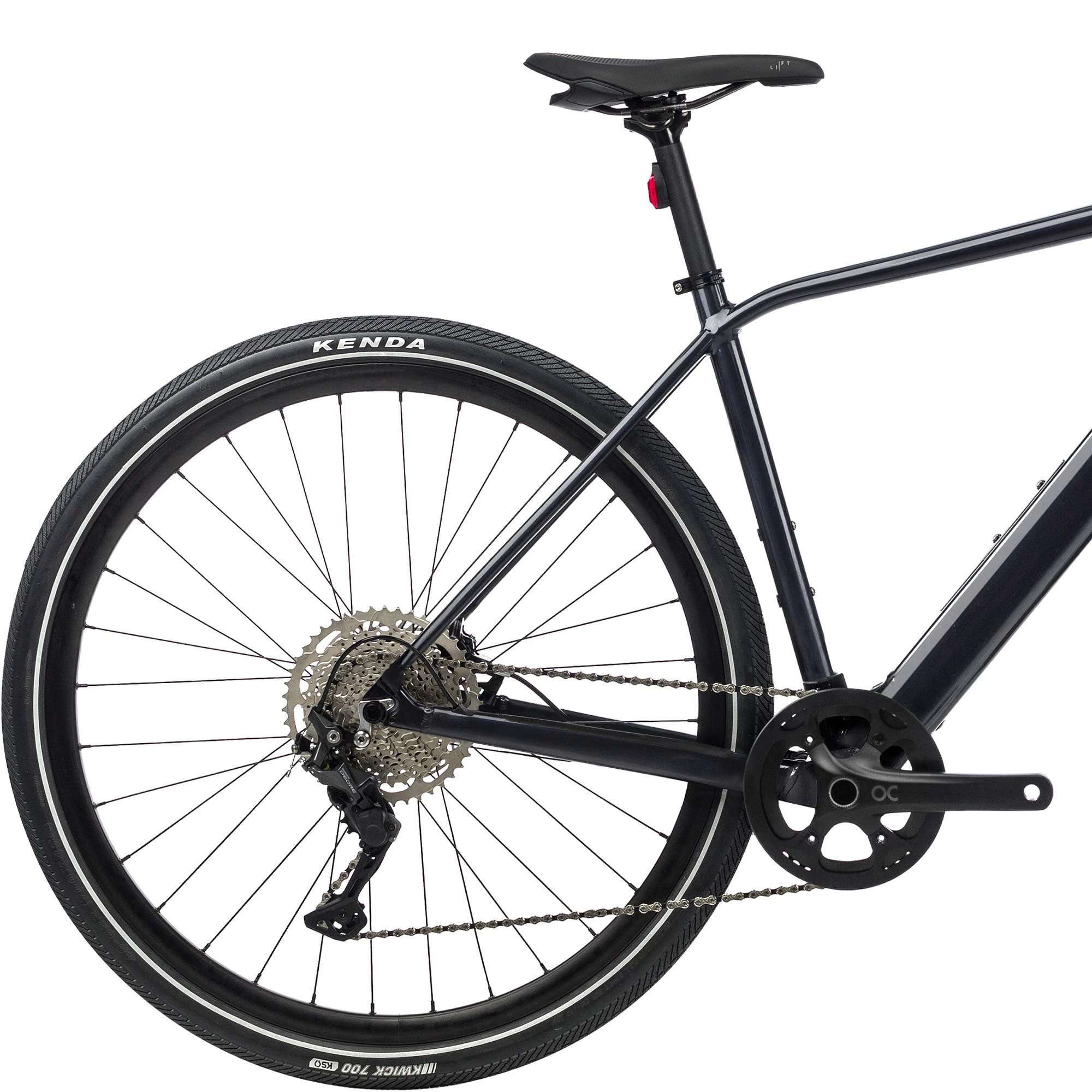

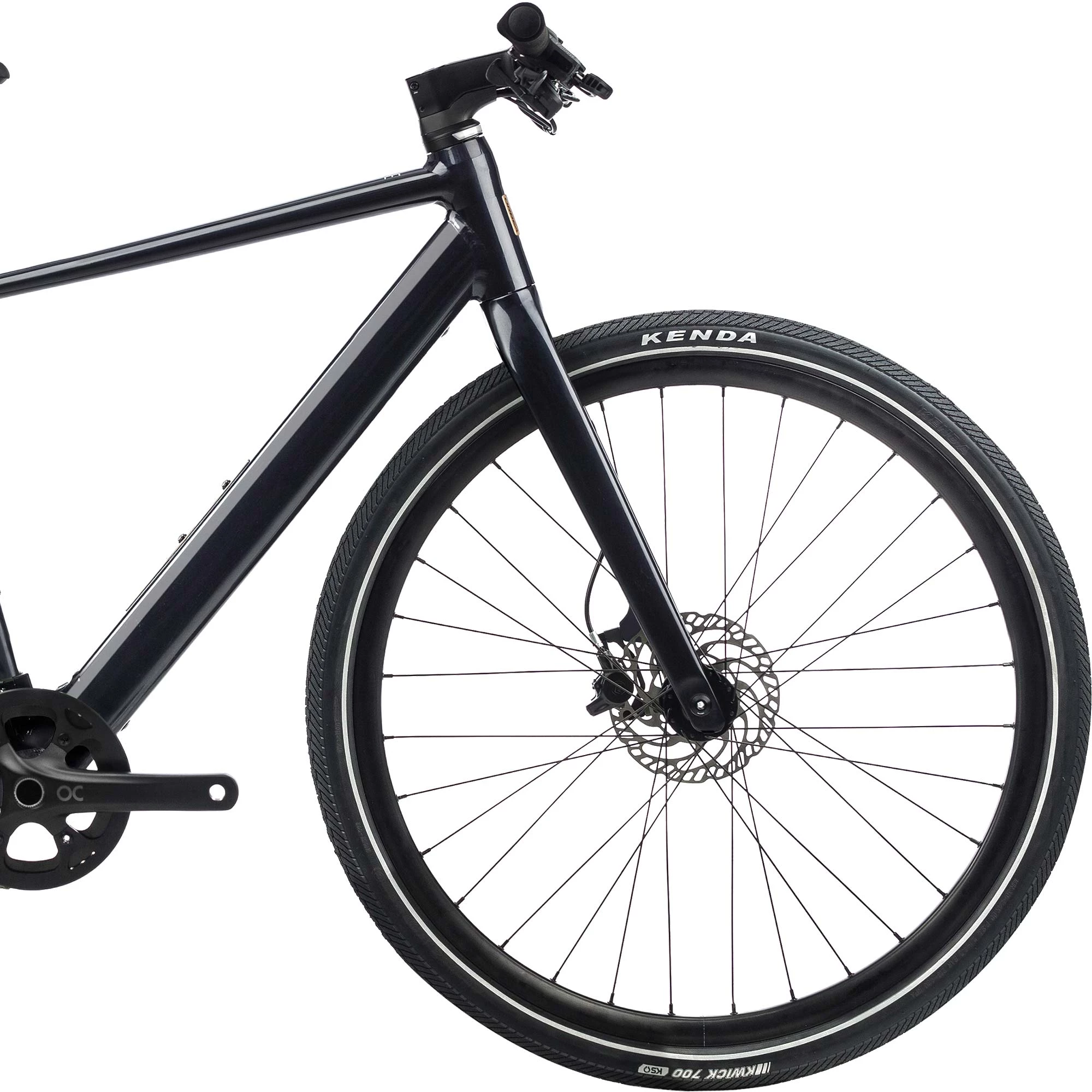

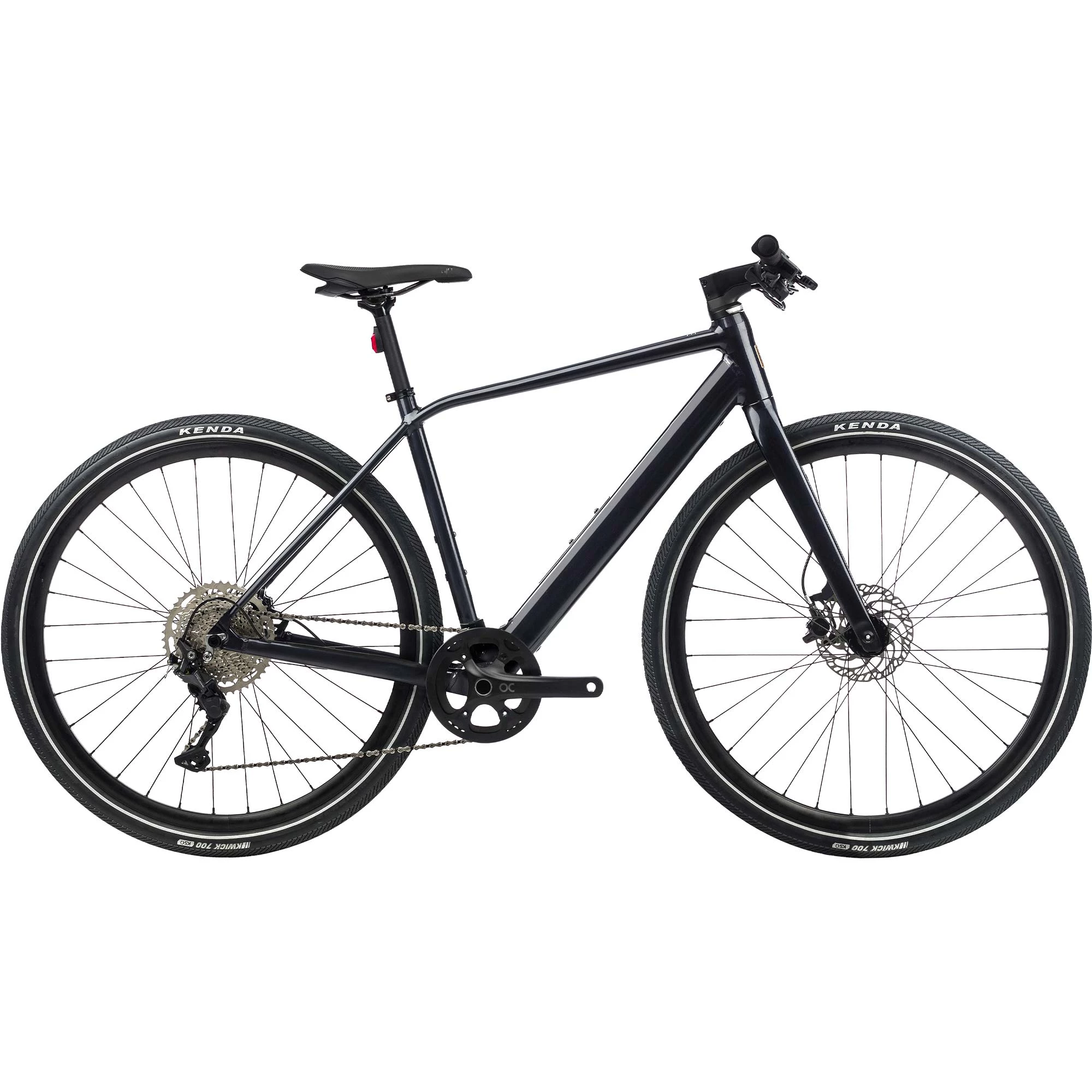

Orbea Vibe H30 Electric Hybrid Bike 2021
Perfect for city and town travel and packed with smart features, the Orbea Vibe H30 Electric Hybrid Bike is ready to take on the hustle and bustle of modern life. By using the sophisticated hub-mounted Ebikemotion X35 motor, the Vibe H30 is lightweight and easy to manoeuvre around the home and workplace. By integrating the slim 248Wh battery into the downtube, it retains the look of a traditional bike, with the overall system being sleek and unobtrusive. The Vibe breaks the mould of prior electric bicycles, delivering lightweight performance, killer style and all the support needed to breeze your way around town.
The Ebikemotion X35 motor system is compact and lightweight, at just 2.1kg for the motor itself. Mounted to the rear hub, it provides 40Nm of torque to speed up hills and propel along the flats with assistance up to a maximum speed of 15.5 mph / 25 km/h. To suit a range of gradients, three power levels are adjustable via the handlebar-mounted iWoc TRIO remote. The 248Wh battery is hidden from view in the downtube and is optimised for town style riding. For longer rides, an aftermarket range extender can be used – perfect for more demanding, all-day rides.
To improve low-light visibility, lights are integrated into the front and rear of the bike, drawing their power from the bike’s main battery. Hydraulic disc brakes from Magura are powerful and confidence-inspiring, and the 10-speed Shimano drivetrain offers a wide range of gears to complement the X35 motor. The low-profile Kenda tyres are incredibly fast-rolling and feature a puncture-resistant strip.
Browse our range of Orbea electric hybrid bikes today.
Highlights
- Integrated frame lighting
- Lightweight internal Ebikemotion 248Wh battery
- Ebikemotion X35 hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Torque Simulation Algorithm to mirror the effort you put in, with a maximum torque of 40Nm
- Near drag-free pedalling when the motor is not in use
- Discreet iWOC TRIO handlebar remote
- 10-speed Shimano Deore groupset for smooth shifting
- Powerful hydraulic Magura MT30 disc brakes
- Comfortable Selle Royal Lift saddle
- Aftermarket range extender available
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Motor Weight: 2.1kg
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135×9 QR, flat mount disc, 700×45 maximum tyre clearance, 1″ 1/2 semi headset, 41×86,5 Pressfit BB, carrier and mudguard compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2″ Internal Cable Routing |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea Alloy 31.8mm 12mm Rise 700mm |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT30 E-STOP |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus, 10-speed |
| Shift Levers | Shimano Deore M4100 10-speed |
| Chain | KMC X10 |
| Cassette | Shimano CS-M4100 11-46t 10-speed |
| Crankset | Orbea OC 42t, with chainguard |
| Front Wheel | Blackjack Ready GR |
| Rear Wheel | Blackjack Ready GR |
| Front Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Saddle | Selle Royal Lift 1404 HRN 266x170mm |
| Seatpost | Orbea Alloy 27.2, offset |
| Pedals | Available to be purchased separately |
| Motor | Ebikemotion X35 Plus 25kmh |
| Ui/Remote | Ebikemotion iWoc TRIO |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Accessories | Integrated lights front and rear (Lezyne FENDER STVZO rear light), Knog OI Classic bell |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
| colour | Night Black |
|---|---|
| Size | S, M, L, XL |
