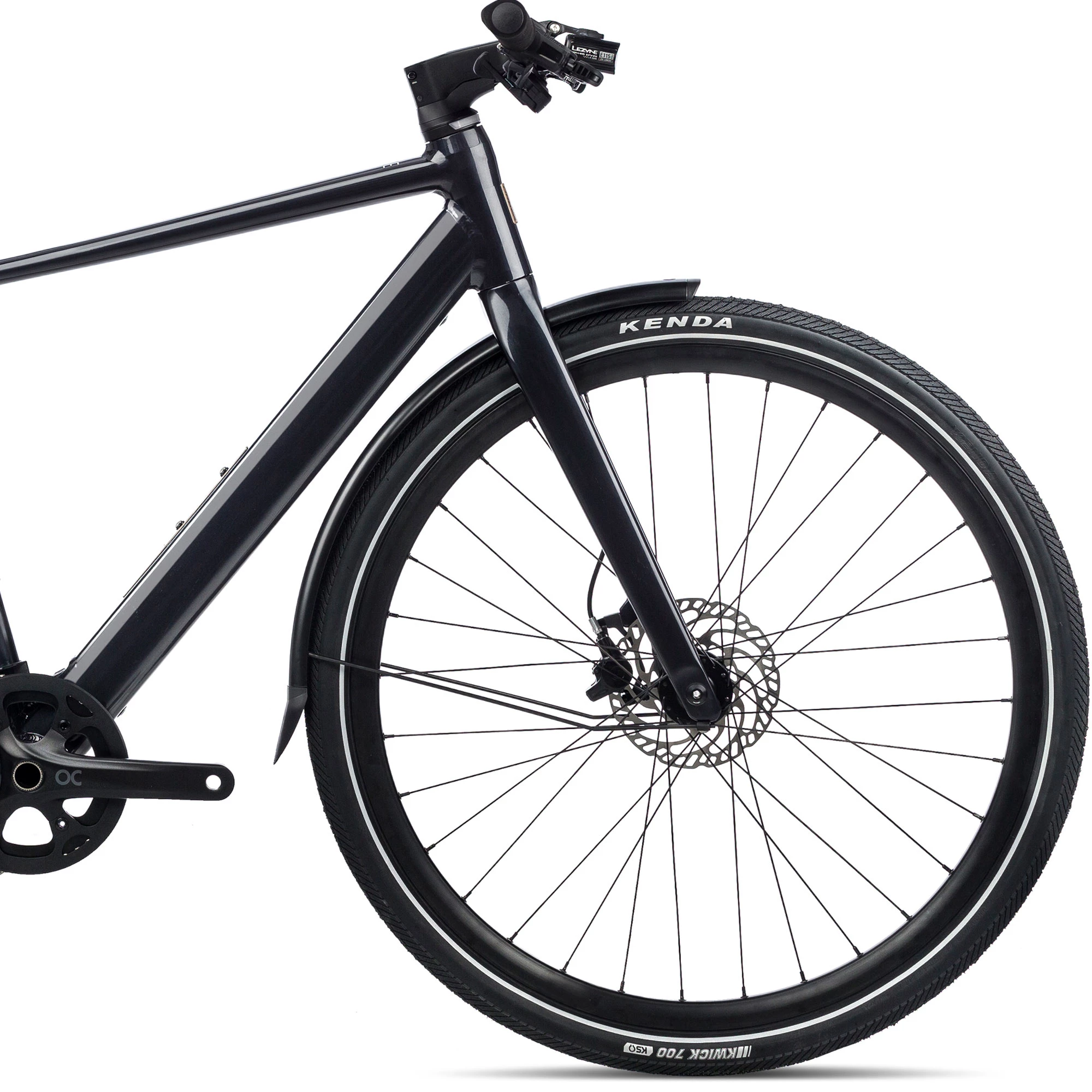

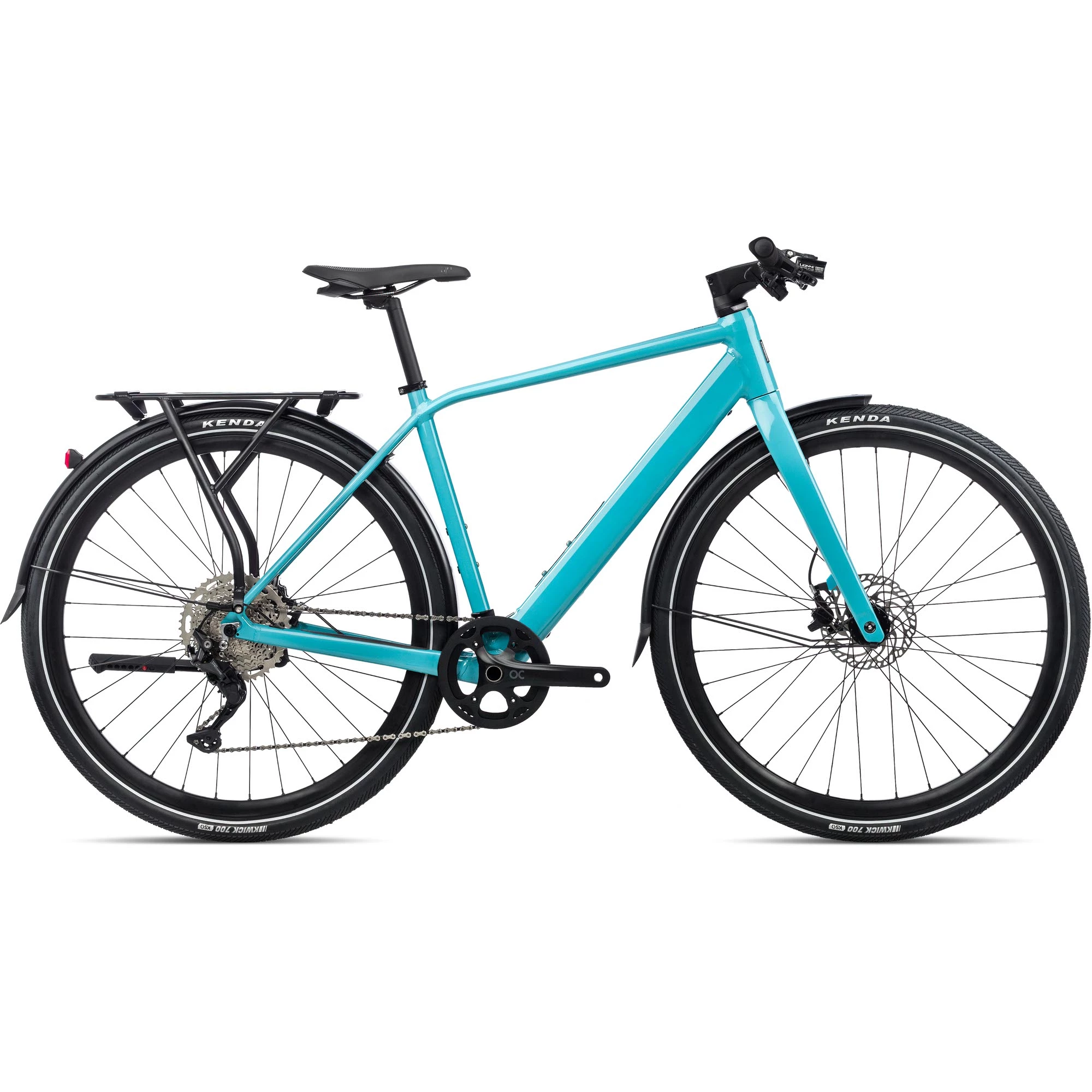

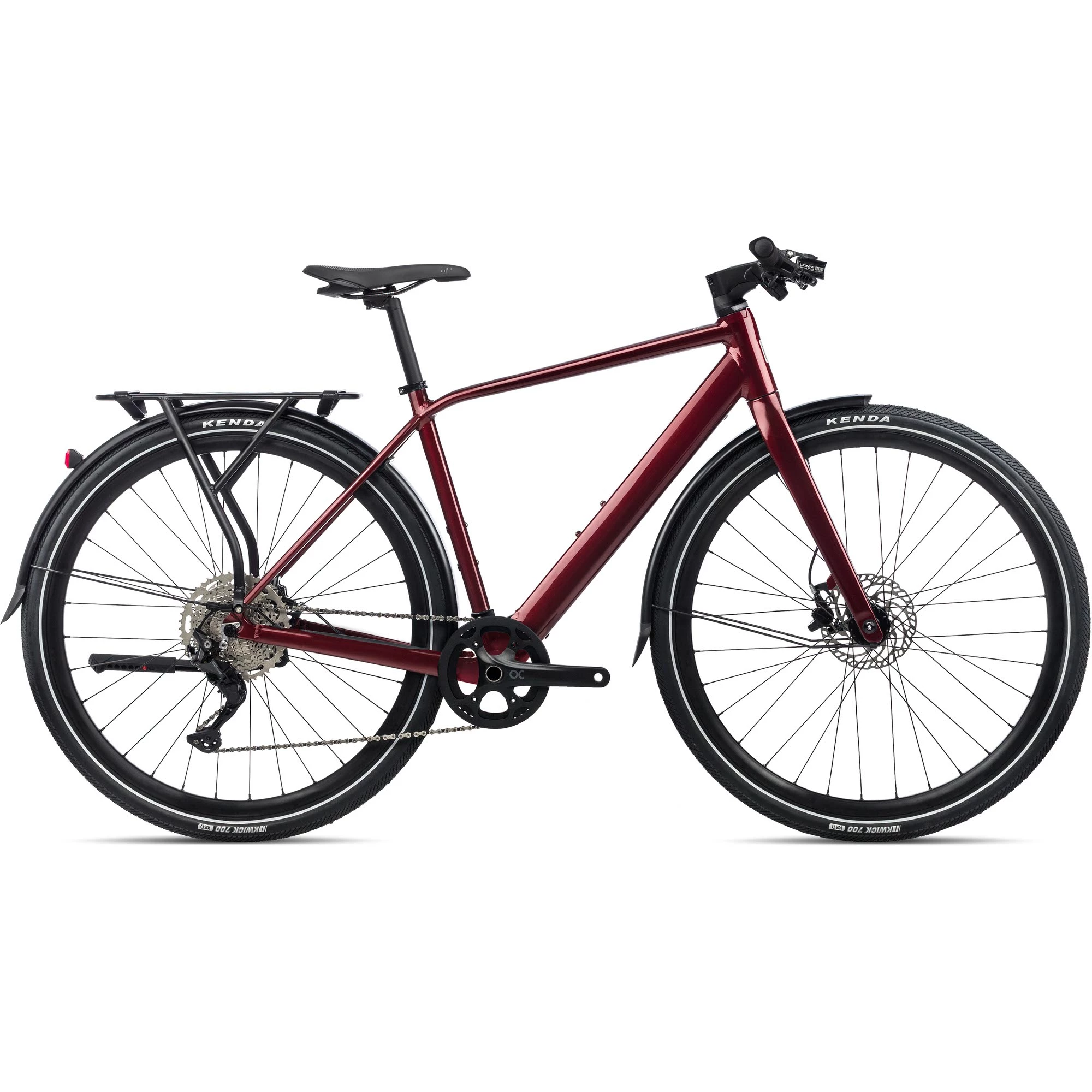

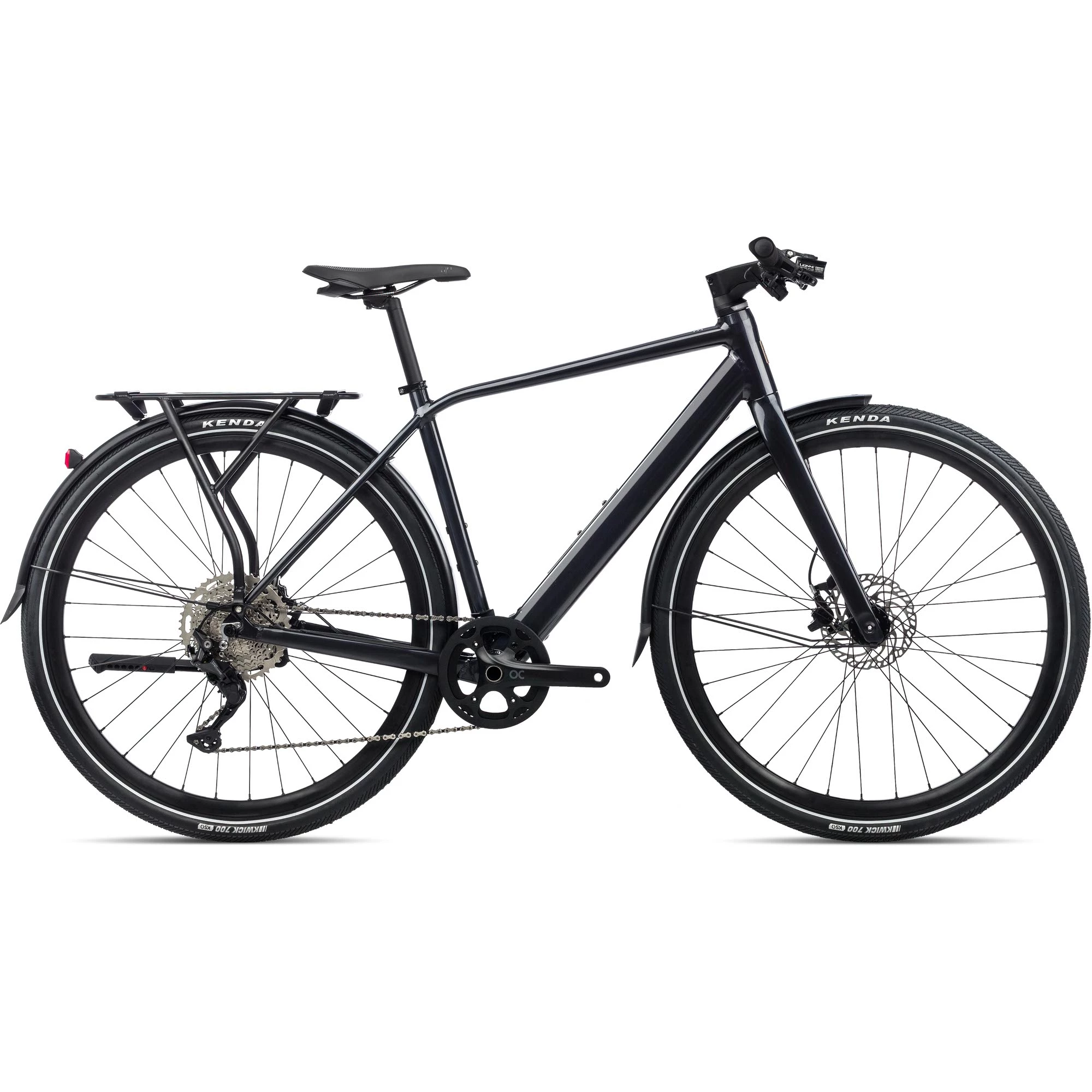

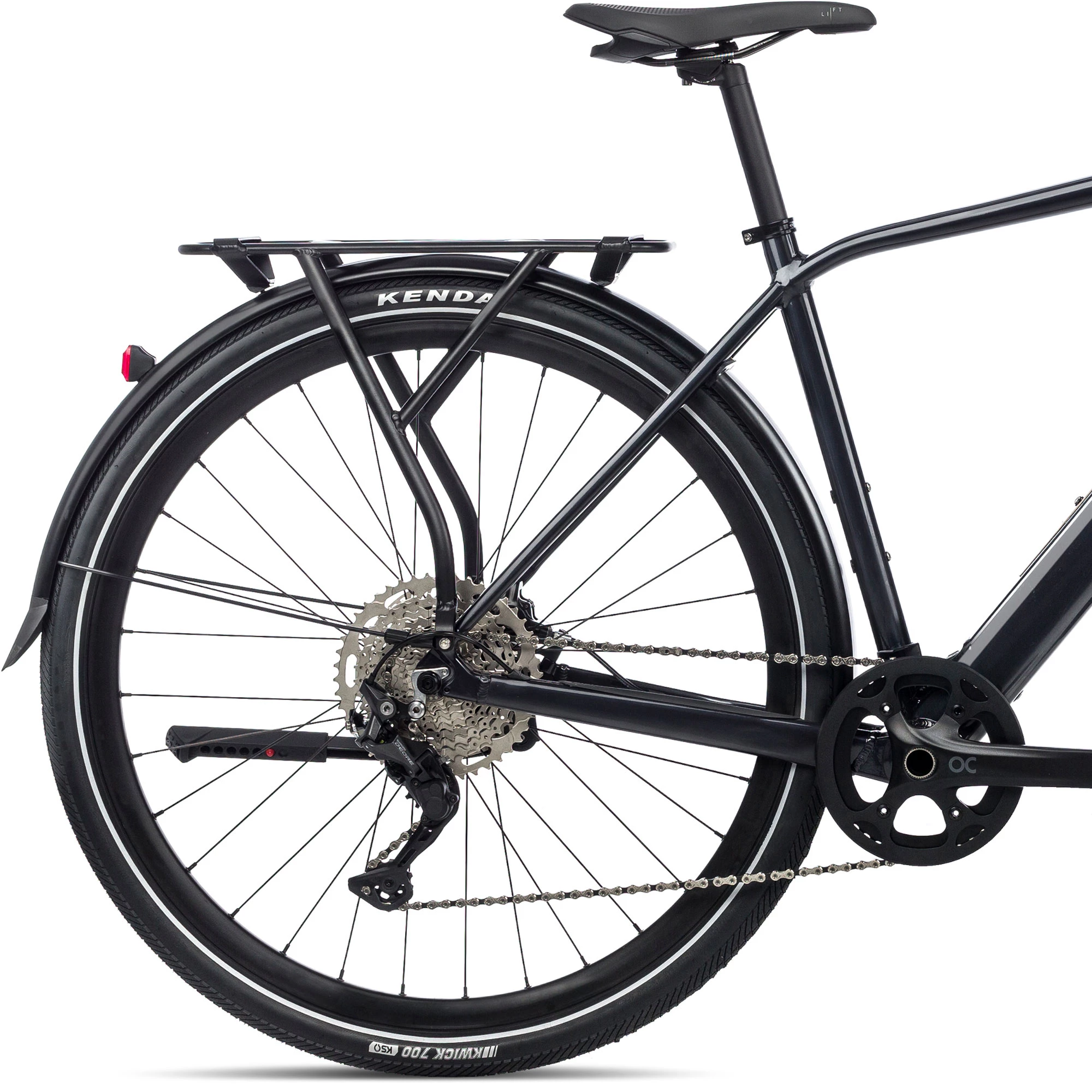

Orbea Vibe H30 EQ Electric Hybrid Bike 2022
Fully equipped for any urban adventure, the Orbea Vibe H30 EQ Electric Hybrid Bike comes pre-fitted with a range of essential accessories. Mudguards, a rear pannier rack, kickstand and integrated lights are included as standard, negating the hassle of finding the correct models to fit your bike. The hydraulic brakes offer confident stopping power, and a carbon fork damps vibration to reduce fatigue on bumpy roads.
At first glance, you could be forgiven for thinking the Vibe is a non-electric bike. The 248Wh battery is neatly integrated into the downtube, while the Ebikemotion X35 Plus resides in the rear hub, providing 40Nm of torque and power assistance up to a maximum speed of 15.5 mph / 25 km/h. The iWoc TRIO remote allows effortless assistance level navigation, and the motor weighs a mere 2.1kg, offering familiar handling that mirrors that of a traditional bicycle. A durable Shimano 10-speed drivetrain provides lasting performance, and puncture-resistant Kenda tyres offer fast-rolling speeds.
Browse our range of Orbea electric hybrid bikes today.
Highlights
- This EQ edition features mudguards, a pannier rack, Knog OI classic bell, and a built-in stand
- Integrated frame lighting, plus a powerful 310 lumen Leyzne front light
- Lightweight internal Ebikemotion 248Wh battery
- Ebikemotion X35 hub motor system
- Minimalist and integrated design to mimic the look of a manual bike
- Torque Simulation Algorithm to mirror the effort you put in, with a max torque of 40Nm
- Near drag-free pedalling when the motor is not in use
- Discreet iWOC TRIO handlebar remote
- 10-speed Shimano Deore groupset for smooth shifting
- Powerful hydraulic Magura MT30 disc brakes
- Comfortable Selle Royal Lift saddle
- Aftermarket range extender available
Battery Specifications
- Maximum Assist: 250w / 40Nm torque
- Motor Weight: 2.1kg
- Battery Power: 248wh
Technical Specification
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminium 2021, ICR cable routing, Forged BB, 135×9 QR, flat mount disc, 700×45 maximum tyre clearance, 1″ 1/2 semi headset, 41×86,5 Pressfit BB, carrier and mudguards compatible |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700×45 maximum tyre clearance, flat mount disc mount, thru-axle 12x100mm, mudguard compatible |
| Headset | Orbea Acros Alloy 1-1/2″ Internal Cable Routing |
| Stem | Orbea OC1 31.8mm interface -6º |
| Handlebar | Orbea Alloy 31.8mm, 12mm Rise, width 700mm |
| Grips | Brooks Comfort Cambium 130mm |
| Front Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Rear Brake | Magura MT30 Hydraulic Disc Easy Route Connection |
| Brake Levers | Magura MT30 E-STOP |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus, 10-speed |
| Shift Levers | Shimano Deore M4100 10-speed |
| Chain | KMC X10 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Crankset | Orbea OC 42t, with chainguard |
| Front Wheel | Ready GR |
| Rear Wheel | Ready GR, Ebikemotion X35 Plus hub |
| Front Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Rear Tyre | Kenda K1052 700x45C Reflective type, puncture protection strip, clincher |
| Saddle | Selle Royal Lift 1404 HRN 266x170mm |
| Seatpost | Orbea Alloy 27.2, offset |
| Pedals | Available to be purchased separately |
| Motor | Ebikemotion X35 Plus 25kmh |
| Ui/Remote | Ebikemotion iWoc TRIO |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Accessories | Integrated lights front and rear, additional Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens front light, Lezyne FENDER STVZO rear light, Ursus Mooi R90 rear alloy adjustable bike stand, Knog OI Classic bell, CURANA Apollo 55mm mudguard, Orbea Vibe rear luggage carrier (maximum weight 15kg) |
| Electric assisted speed limit | 15.5 mph / 25 km/h |
Built, Checked, Tuned and Tested
All our bikes are fully built, checked, tuned and tested by our Cytech qualified mechanics and then securely packaged, ready for delivery. All you have to do is add the pedals (if included), attach the handlebars to the stem and tighten them following the included detailed instructions or by watching our video and using the provided FREE tools. Visit our Bike Assembly page to see how you assemble your new bike once you receive it.
All bikes collected from our shop, are built, tested and ready to ride.
Please note, occasionally, manufacturers may change the specification without notice. Bicycles do not come with pedals unless otherwise specified. Bikes ordered for delivery will not arrive with the pedals installed, please refer to the owners manual and pedal installation guides provided for guidance. We do not install accessories to bikes, including mudguards. Bikes ordered for delivery that have tubeless compatible tyres and rims will arrive with inner tubes installed or with tubeless valves installed, this will be brand dependent. Sealant is available to be purchased separately.
If you require any assistance please contact our Customer Care team.
| colour | Blue, Night Black, Metallic Dark Red |
|---|---|
| Size | S, M, L, XL |
